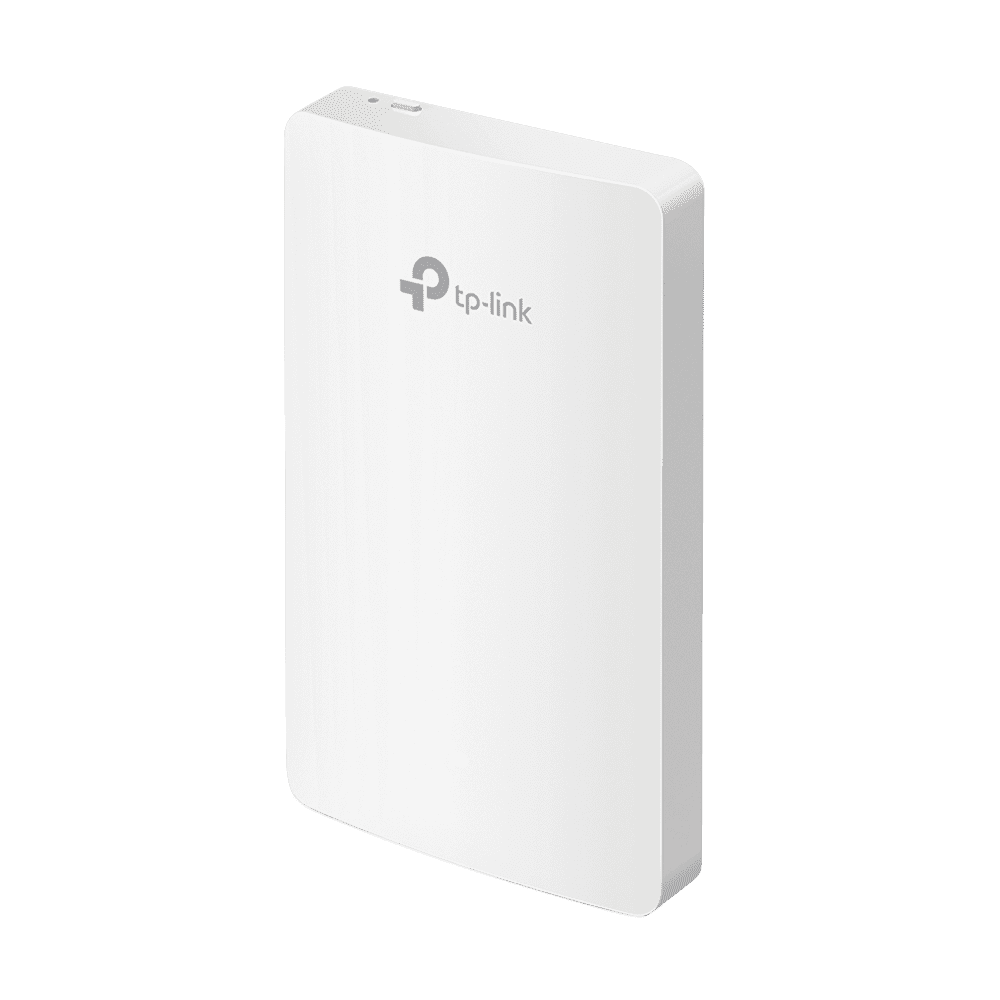

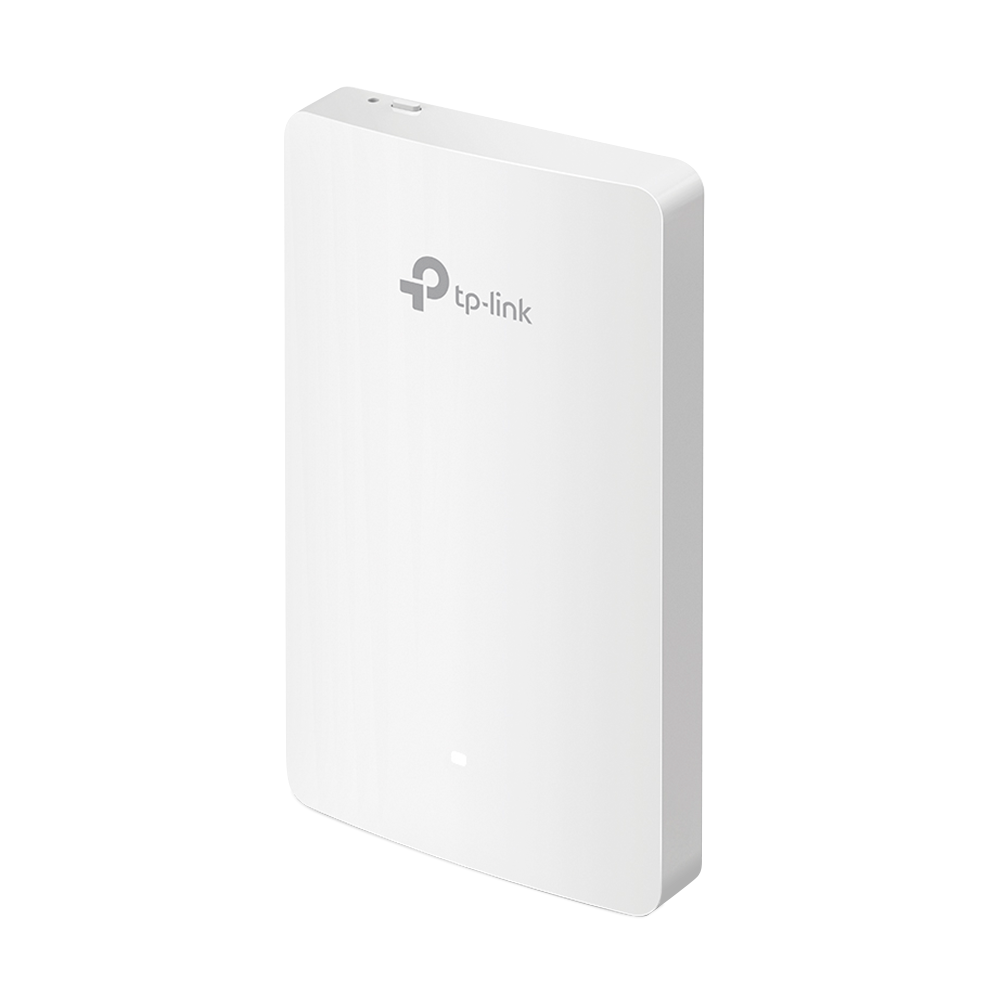

TP-Link EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

The TP-Link EAP235-Wall is a sleek AC1200 dual-band wall
plate access point designed for high-density indoor environments such as hotels,
apartments, hospitals, offices, dormitories, and serviced residences. Its
ultra-slim, wall-mounted design blends seamlessly into standard electrical
junction boxes while delivering fast, stable, and centrally managed Wi-Fi.

With dual-band speeds up to 1,167 Mbps (300 Mbps on 2.4GHz
and 867 Mbps on 5GHz), MU-MIMO technology, and beamforming, the
EAP235-Wall ensures smooth connectivity for multiple users and devices
simultaneously. It supports over 200 concurrent clients, making it ideal
for room-by-room Wi-Fi deployments.

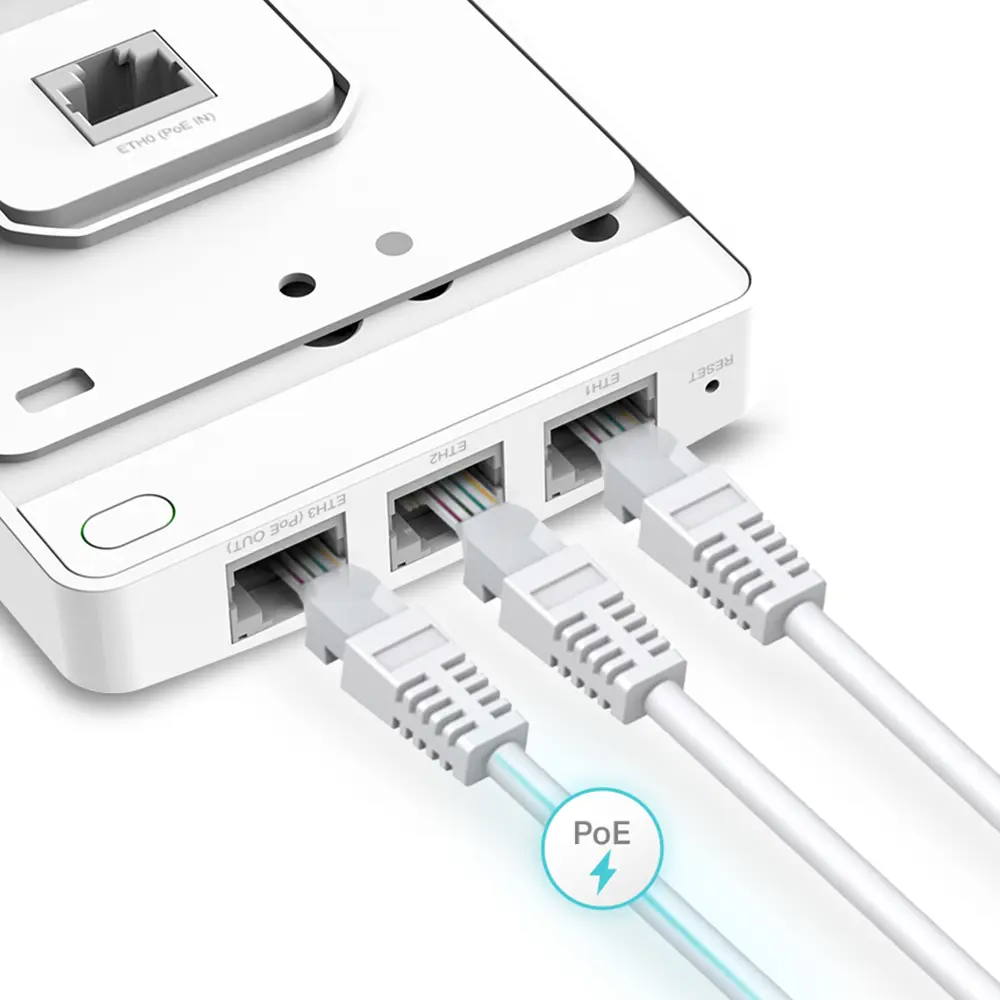

The unit features four Gigabit Ethernet ports—one uplink
and three access ports—with PoE pass-through on one port to power IP
phones, cameras, or other PoE devices. Integrated into the TP-Link Omada SDN
platform, it enables cloud-based centralized management, remote
monitoring, and zero-touch provisioning via the Omada app or controller.

Advanced security options such as captive portal guest
authentication, VLAN support, and enterprise-grade encryption
make the EAP235-Wall a professional-grade solution for managed networks.

 Key
Features

• AC1200
  Dual-Band Wi-Fi (300 Mbps @ 2.4GHz + 867 Mbps @ 5GHz)
• Wall
  Plate Design – Ideal for hotels, offices &
  dormitories
• MU-MIMO
  & Beamforming for better performance
• 4×
  Gigabit Ethernet Ports (1 uplink, 3 access)
• PoE
  Pass-Through to power additional devices
• Omada
  SDN Cloud Management
• Elegant,
  Ultra-Slim Design
• Advanced
  Guest Network & Captive Portal Support

Hardware Specifications

• Uplink
  Port: 1 × Gigabit Ethernet (802.3af/at PoE input)
• Access
  Ports: 3 × Gigabit Ethernet (1 with PoE
  pass-through)
• PoE
  Output:
• Requires
  802.3at input
• Max
  PoE output: 13W
• Max
  Power Consumption:
• 9.8W
  (without PoE out)
• 24.4W
  (with 13W PoE out)
• Dimensions: 143 ×
  86 × 19.7 mm
• Mounting: Wall
  plate (US / EU / 86mm junction boxes)
• Physical
  Security Lock: Yes

Wireless Specifications

• Standards: IEEE
  802.11a/b/g/n/ac
• Frequency
  Bands: 2.4GHz & 5GHz
• Max
  Speed:
• 2.4GHz:
  Up to 300 Mbps
• 5GHz:
  Up to 867 Mbps
• Coverage: Up to
  25㎡ (300 ft²)
• Concurrent
  Clients: 200+
• SSIDs: Up to
  16 (8 per band)
• Transmit
  Power: ≤21 dBm

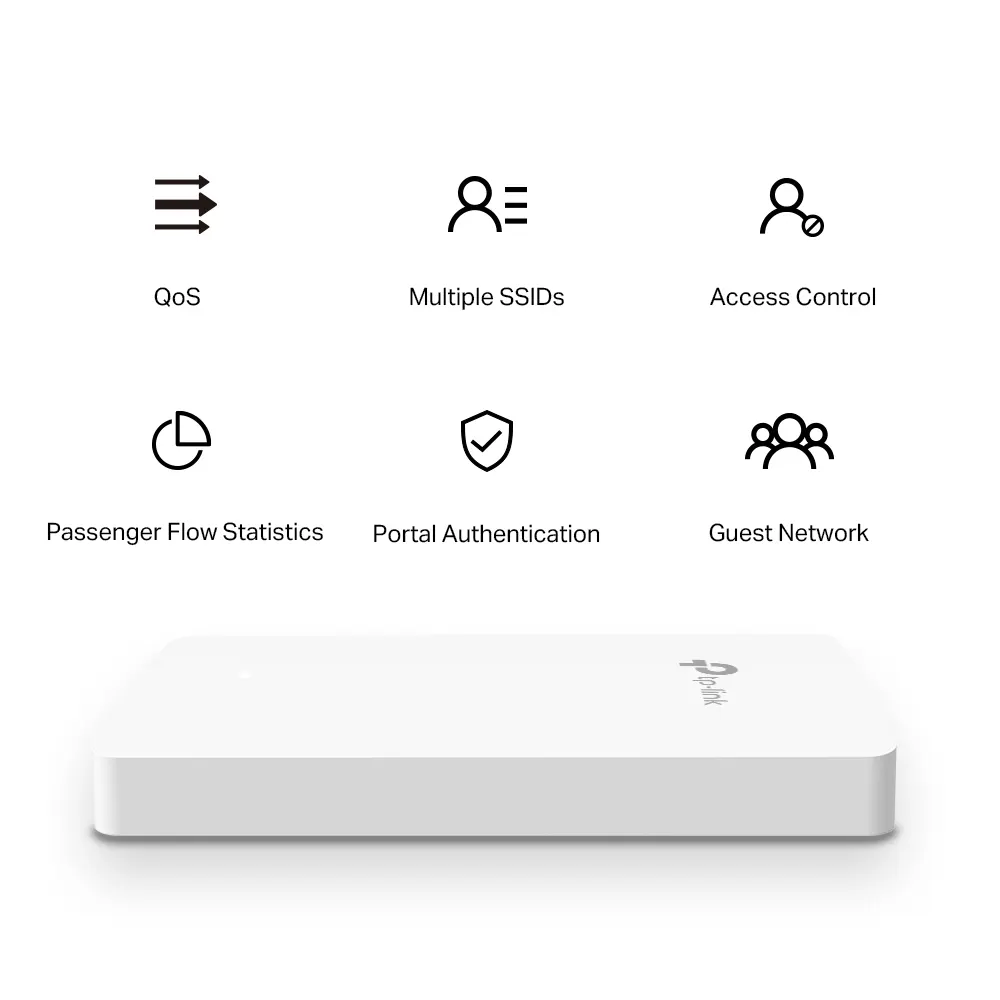

Wireless Security & Features

• Captive
  Portal (SMS / Voucher / Custom Portal)
• WPA /
  WPA2-PSK & Enterprise
• 802.1X
  EAP Authentication
• SSID
  & Port-Based VLAN
• MAC
  Address Filtering
• Rogue
  AP Detection
• Client
  Isolation
• Load
  Balancing & Rate Limiting
• Scheduled
  Reboot & Wi-Fi Scheduling

Management & Control

• Omada
  App: Yes
• Cloud
  Access: Yes
• Controllers
  Supported:
• Omada
  Cloud Controller
• OC200
  / OC300 Hardware Controllers
• Omada
  Software Controller
• Management
  Interfaces: HTTP / HTTPS, SNMP, SSH
• Zero-Touch
  Provisioning: Supported
• Multi-Site
  Management: Yes

What’s in the Box

• TP-Link
  EAP235-Wall Access Point
• Installation
  Guide
• Mounting
  Screws

Environmental Specifications

• Operating
  Temperature: 0°C to 40°C
• Storage
  Temperature: -40°C to 70°C
• Operating
  Humidity: 10%–90% (non-condensing)
• Storage
  Humidity: 5%–90% (non-condensing)
