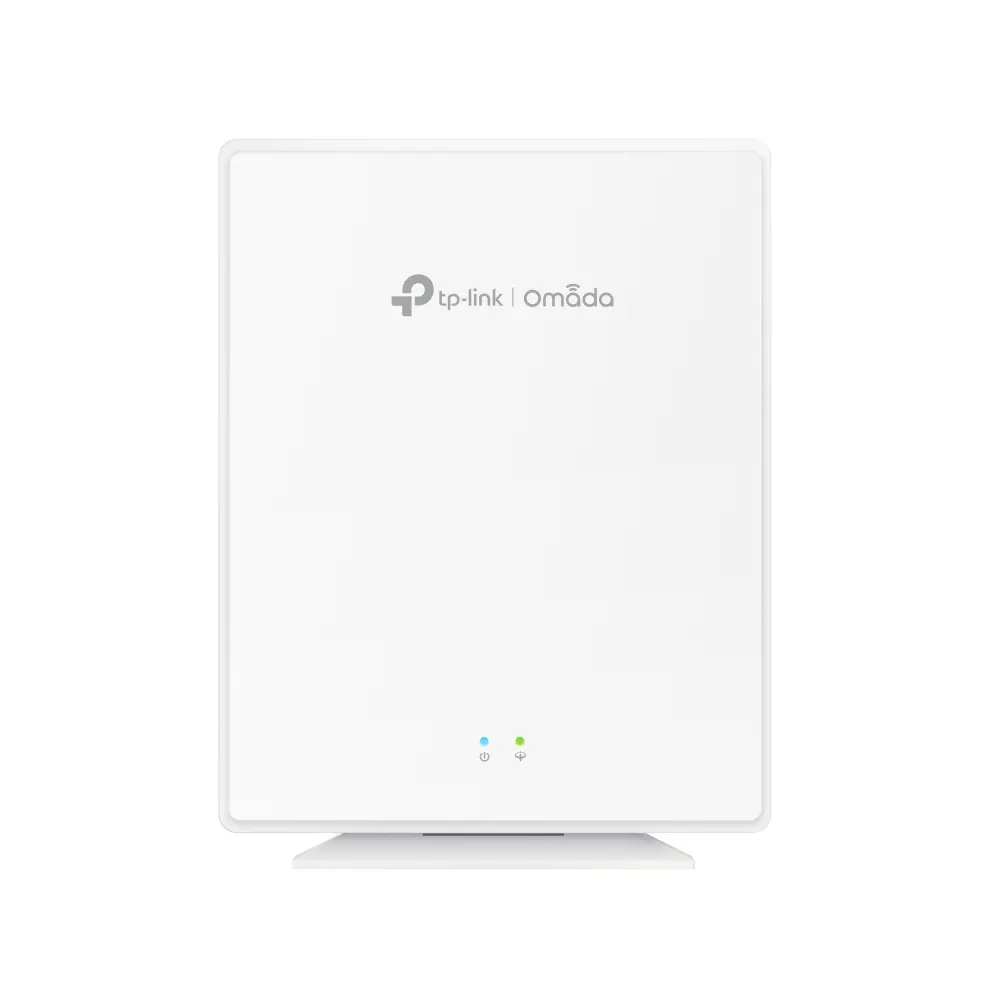

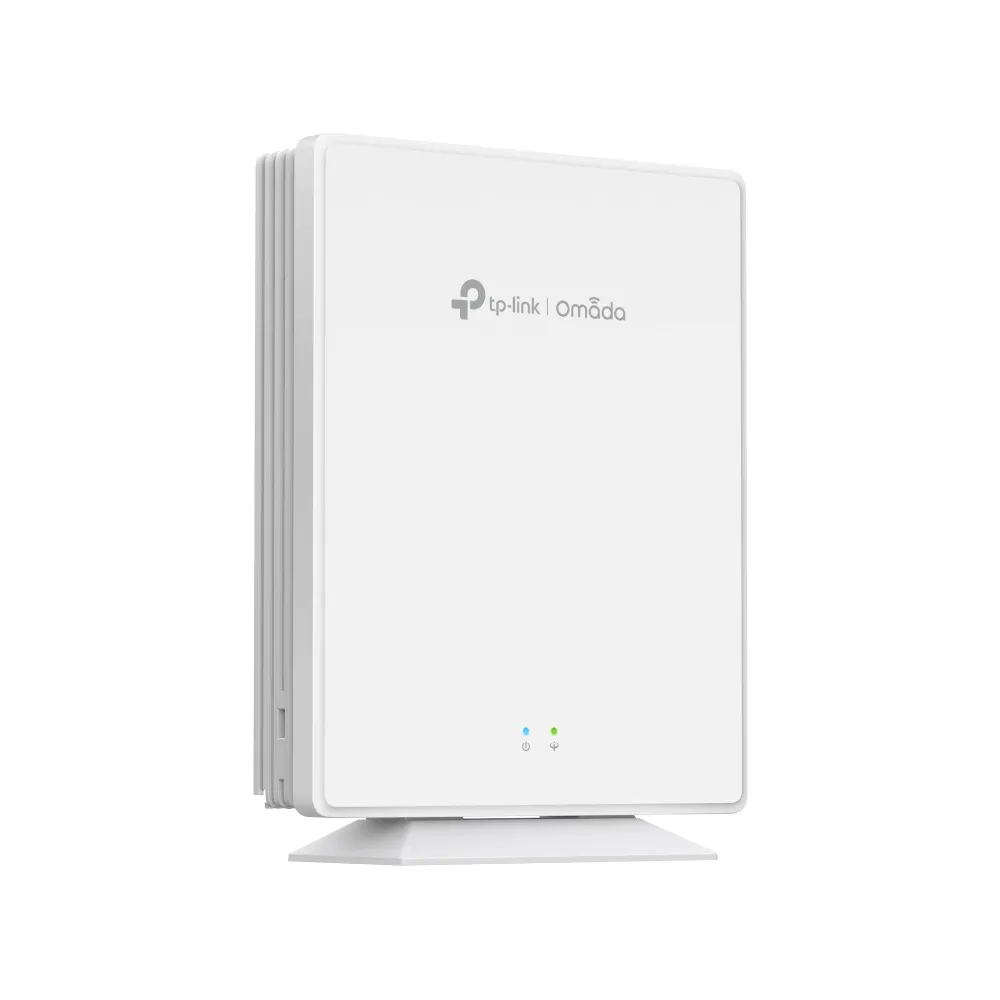

TP-Link EAP610GP-Desktop AX1800 Wi-Fi 6 GPON Desktop Access Point

The TP-Link
EAP610GP-Desktop is an advanced AX1800 Wi-Fi 6 GPON desktop access point
designed for next-generation fiber networks, delivering high-speed wireless,
wired, and voice services through a single fiber connection. Built for ISPs,
hotels, offices, apartments, and smart buildings, it combines GPON, Wi-Fi 6,
VoIP, and Omada SDN management into one compact device.

Powered by Wi-Fi 6
(802.11ax) technology, the EAP610GP-Desktop delivers combined wireless
speeds of up to 1.8 Gbps, ensuring smoother streaming, faster downloads,
and reliable connectivity for over 120 concurrent users. With OFDMA
and MU-MIMO, network efficiency is significantly improved, even in
high-density environments.

Its integrated GPON
port enables ultra-long-range fiber connectivity (up to 20 km), while four
Gigabit Ethernet ports, including PoE-out support, allow seamless
expansion to IP phones, cameras, or other powered devices. The built-in FXS
port supports multiple VoIP accounts, making it ideal for voice-enabled
deployments.

Fully integrated with TP-Link
Omada SDN, the EAP610GP-Desktop supports centralized cloud management,
zero-touch provisioning, Omada Mesh, and seamless roaming (802.11k/v/r),
ensuring enterprise-grade performance with simplified operations.

Key Features

• AX1800
  Wi-Fi 6 Speeds – 1201 Mbps (5 GHz) + 574 Mbps
  (2.4 GHz)
• Integrated
  GPON Port for fiber-based deployments
• One
  Fiber for Multiple Services – Data, Wi-Fi,
  VoIP, and video
• VoIP
  Support via FXS port with multiple call
  features
• 4×
  Gigabit Ethernet Ports, one with 802.3af PoE Out
• Omada
  SDN Integration with cloud & centralized
  management
• OFDMA
  & MU-MIMO for high-density environments
• Desktop
  or Wall-Mount Installation flexibility

Wireless Specifications

• Wireless
  Standards: IEEE 802.11a/b/g/n/ac/ax
• Frequency
  Bands: 2.4 GHz & 5 GHz
• Max
  Wireless Speed:
• 5
  GHz: Up to 1201 Mbps
• 2.4
  GHz: Up to 574 Mbps
• Coverage:
  Up to 140㎡
  (1500 ft²)
• Concurrent
  Clients: 120+
• SSIDs:
  16 total (8 per band)

Wireless Security & Optimization

• WPA
  / WPA2 / WPA3 (Personal & Enterprise)
• Captive
  Portal Authentication
• VLAN
  & PPSK Support
• Rogue
  AP Detection
• 802.1X
  Authentication
• Band
  Steering, Airtime Fairness, Beamforming
• Load
  Balancing & Rate Limiting

Hardware & GPON Specifications

Interfaces

• 1×
  GPON Port (SC-APC)
• 1×
  FXS Port (VoIP)
• 4×
  Gigabit RJ45 Ports (1× supports 802.3af PoE
  Out)

GPON Details

• Standards:
  ITU-984.x, G.988 (Class B+)
• Speed:
• Downstream:
  2.488 Gbps
• Upstream:
  1.244 Gbps
• Fiber
  Type: Single-mode 9/125 μm
• Max
  Distance: 20 km

 Physical & Power

• Antennas:
• 2.4
  GHz: 2 × 5 dBi
• 5
  GHz: 2 × 4.5 dBi
• Mounting:
  Desktop or Wall (kits included)
• Dimensions:
  175 × 140 × 33 mm
• Weight:
  492 g
• Power
  Supply: 53.5V / 0.81A DC
• Max
  Power Consumption: 17.3W (PoE Out off)

 What’s in the Box

• TP-Link
  EAP610GP-Desktop
• Desktop
  / Wall Mounting Kit
• Power
  Adapter
• Installation
  Guide
