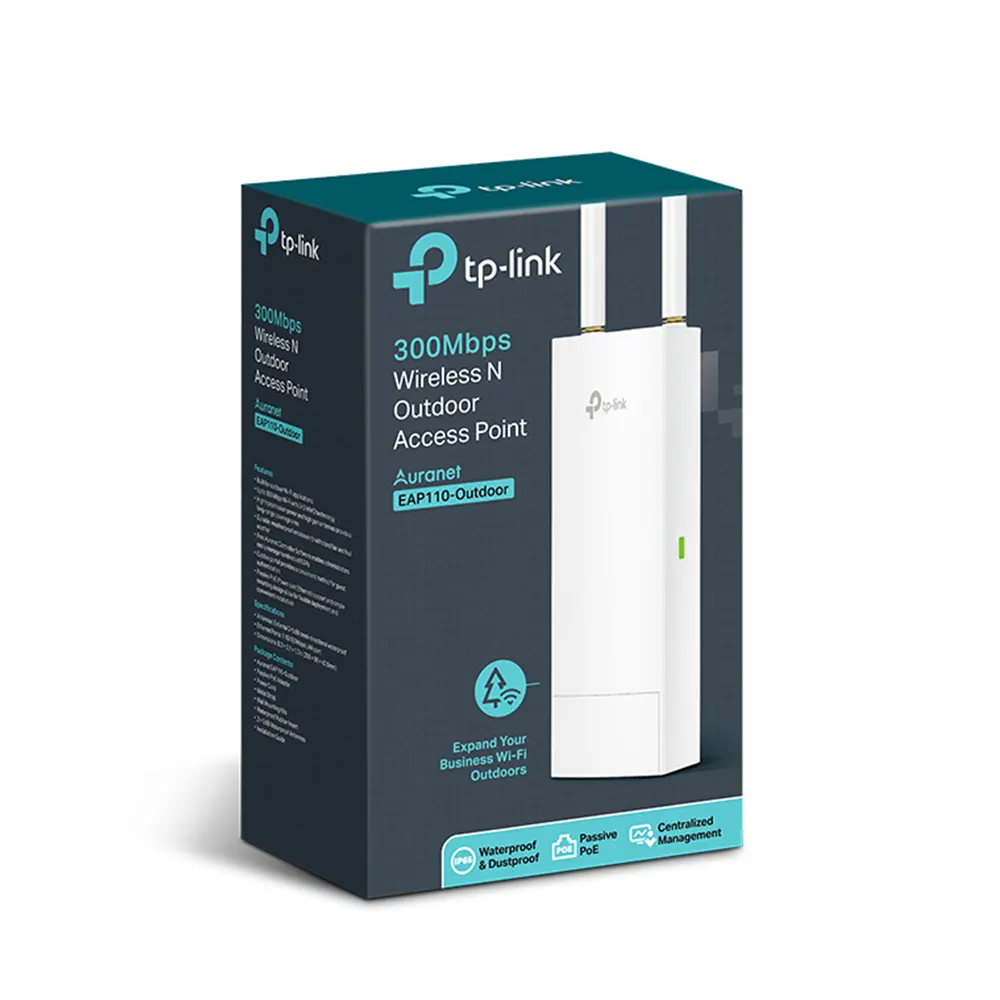

TP-Link EAP110-Outdoor 300Mbps Wireless N Outdoor Access Point

The TP-Link EAP110-Outdoor is a reliable 300Mbps
Wireless N outdoor access point designed specifically for long-range
outdoor Wi-Fi deployments such as campuses, warehouses, parking areas,
cafés, hotels, farms, and outdoor workspaces.

Powered by 2×2 MIMO technology, high transmission power,
and dual 3dBi waterproof antennas, the EAP110-Outdoor delivers stable
and extended wireless coverage even in challenging environments. Its IP65
weatherproof enclosure protects the device against rain, dust, heat, and
harsh outdoor conditions, ensuring consistent performance year-round.

With Passive PoE support, installation is simple and
flexible—requiring only a single Ethernet cable for both power and data. The
access point integrates seamlessly with the TP-Link Omada SDN platform,
allowing free cloud-based centralized management via the Omada app, web
interface, or hardware/software controllers.

Advanced enterprise-grade features such as secure guest
networks, multiple SSIDs, VLAN support, captive portal
authentication, and load balancing make the EAP110-Outdoor an
excellent choice for businesses that need scalable, secure, and professionally
managed outdoor Wi-Fi.

 Key
Features

• Up to
  300Mbps Wireless Speed on 2.4GHz band
• Designed
  for Outdoor Use with IP65 weatherproof enclosure
• 2×2
  MIMO Technology for stable long-range Wi-Fi
• High-Power
  Transmission & High-Gain Antennas
• Passive
  PoE Support for flexible deployment
• Omada
  Cloud Centralized Management (free)
• Secure
  Guest Network with SMS / Facebook / Voucher login
• VLAN
  & Enterprise Security Support
• Pole
  & Wall Mounting Kits Included

Hardware Specifications

• Interface: 1 ×
  Fast Ethernet (RJ-45, Passive PoE supported)
• Buttons: Reset
• Power
  Supply: 24V Passive PoE (Adapter included)
• Max
  Power Consumption: 3.12W
• Dimensions: 216 ×
  46 × 27 mm
• Antennas: 2 ×
  3dBi External Omni Waterproof
• Weatherproof
  Rating: IP65
• Mounting: Pole /
  Wall mounting (kits included)

 Wireless Specifications

• Wireless
  Standards: IEEE 802.11b/g/n
• Frequency
  Band: 2.4GHz
• Max
  Wireless Speed:
• 11n:
  Up to 300Mbps
• 11g:
  Up to 54Mbps
• 11b:
  Up to 11Mbps
• Concurrent
  Clients: 100+
• SSIDs: Up to
  8 per AP
• Transmit
  Power:
• CE:
  ≤20dBm (EIRP)
• FCC:
  ≤22dBm

Wireless Security & Features

• Captive
  Portal Authentication
• VLAN
  (SSID to VLAN Mapping)
• WPA /
  WPA2-Enterprise
• WPA-PSK
  / WPA2-PSK
• 802.1X
  Authentication
• MAC
  Address Filtering
• Rogue
  AP Detection
• Client
  Isolation
• Load
  Balancing & Rate Limiting
• Wireless
  Scheduling & Reboot Schedule

 Management & Control

• Omada
  App Support: Yes
• Cloud
  Access: Yes (via Omada Controllers)
• Controllers
  Supported:
• Omada
  Hardware Controller (OC200 / OC300)
• Omada
  Software Controller
• Management
  Interfaces: Web (HTTP/HTTPS), SNMP, SSH, Telnet
• Multi-Site
  & VLAN Management: Supported
• Email
  Alerts & System Logs: Yes

System Requirements

• Microsoft
  Windows XP / Vista / 7 / 8 / 10

What’s in the Box

• TP-Link
  EAP110-Outdoor Access Point
• Passive
  PoE Adapter
• Power
  Cord
• Mounting
  Kits
• Waterproof
  Rubber Insert
• Waterproof
  Antennas
• Installation
  Guide

 Environmental Specifications

• Operating
  Temperature: -30℃ to 65℃
• Storage
  Temperature: -40℃ to 70℃
• Operating
  Humidity: 10%–90% (non-condensing)
• Storage
  Humidity: 5%–90% (non-condensing)
