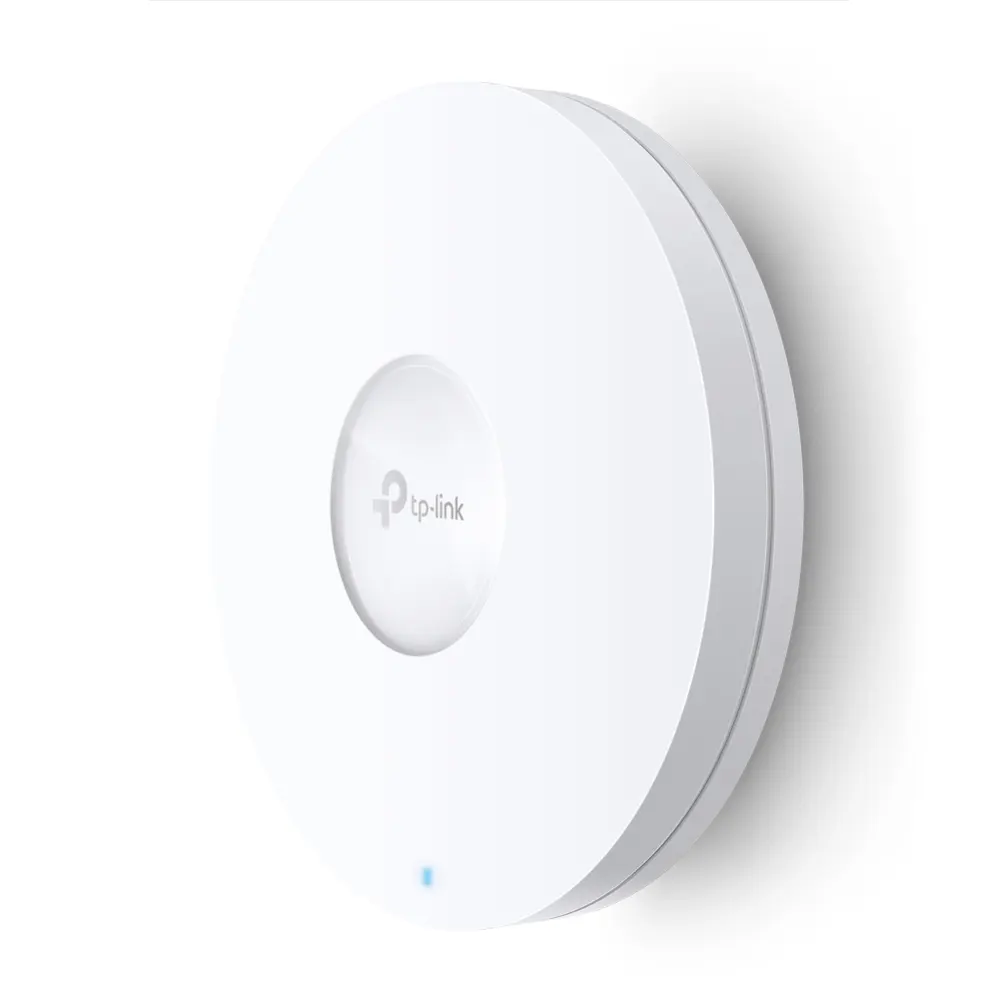

TP-Link EAP620 HD AX1800 Wi-Fi 6 Dual-Band Ceiling Mount Access Point

The TP-Link EAP620 HD is a high-density AX1800
Wi-Fi 6 dual-band ceiling mount access point, engineered for environments
where hundreds of devices need fast, stable, and secure wireless connectivity.
Designed for offices, hotels, schools, hospitals, malls, and large
enterprises, it delivers exceptional performance under heavy network load.

Powered by Wi-Fi 6 (802.11ax) technology,
the EAP620 HD provides combined wireless speeds of up to 1.8 Gbps,
ensuring smoother video streaming, faster downloads, and lower latency. With
advanced OFDMA, MU-MIMO, and 1024-QAM, it supports 1,000+ concurrent
clients, making it ideal for high-density deployments.

Integrated seamlessly into TP-Link Omada SDN,
the EAP620 HD supports zero-touch provisioning, centralized cloud
management, real-time monitoring, and multi-site control. IT administrators
can configure, monitor, and manage the network remotely using the Omada Cloud
or mobile app.

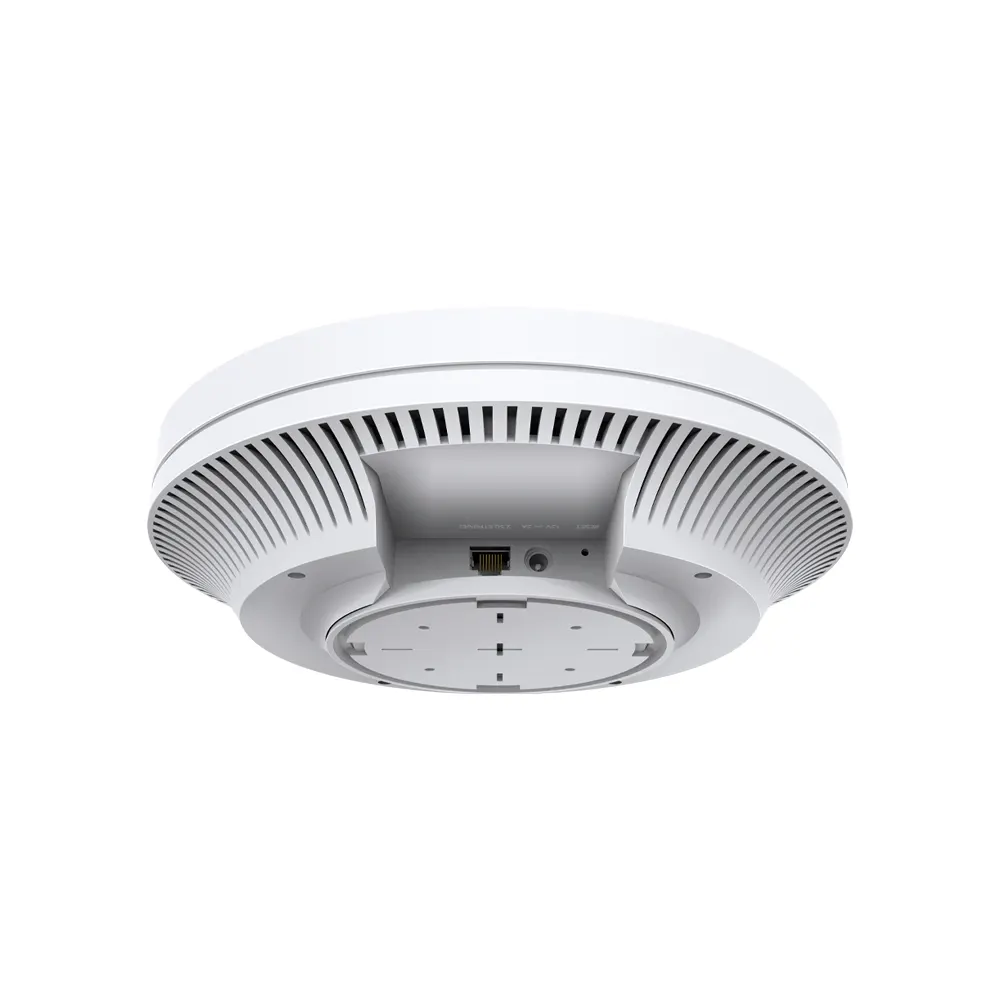

With PoE+ (802.3at) support and a sleek
ceiling-mount design, installation is fast, flexible, and clean. Advanced
roaming technologies ensure uninterrupted connectivity as users move between
access points, while enterprise-grade security features keep networks protected
at all times.

Key Features

• AX1800
  Wi-Fi 6 Speeds – 574 Mbps (2.4 GHz) + 1201 Mbps
  (5 GHz)
• High-Density
  Performance – Supports 1,000+ clients
• Omada
  SDN Ready – Cloud & centralized
  management
• Seamless
  Roaming – Smooth video & voice while
  moving
• PoE+
  Support (802.3at) – Simplified installation
• Secure
  Guest Network – Captive portal & multiple
  login options
• Ceiling
  / Wall Mount Design – Professional, discreet
  deployment

Wireless Specifications

• Wireless
  Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency
  Bands: 2.4 GHz & 5 GHz
• Max
  Wireless Speed:
  • 5
    GHz: Up to 1201 Mbps
  • 2.4
    GHz: Up to 574 Mbps
• Concurrent
  Clients: 1,000+
• SSIDs:
  Up to 16 (8 per band)

Wireless Security & Optimization

• WPA
  / WPA2 / WPA3 (Personal & Enterprise)
• 802.1X
  Authentication
• Captive
  Portal Authentication
• VLAN
  & SSID-to-VLAN Mapping
• Rogue
  AP Detection
• Band
  Steering, Airtime Fairness & Load Balancing
• MAC
  Filtering & Client Isolation

 Hardware & Power

• Ethernet
  Interface:
  • 1
    × Gigabit Ethernet (RJ-45) with 802.3at PoE
• Antennas:
  • 2.4
    GHz: 2 × 4 dBi
  • 5
    GHz: 2 × 5 dBi
• Power
  Supply:
  • 802.3at
    PoE+
  • 12V
    DC
• Max
  Power Consumption:
  • EU:
    12W
  • US:
    13.5W

 Physical Specifications

• Mounting:
  Ceiling / Wall (kits included)
• Dimensions:
  243 × 243 × 64 mm
• Operating
  Temperature: 0–40 °C
• Certifications:
  CE, FCC, RoHS

What’s in the Box

• TP-Link
  EAP620 HD Access Point
• Power
  Adapter
• Ceiling
  / Wall Mounting Kits
• Installation
  Guide
