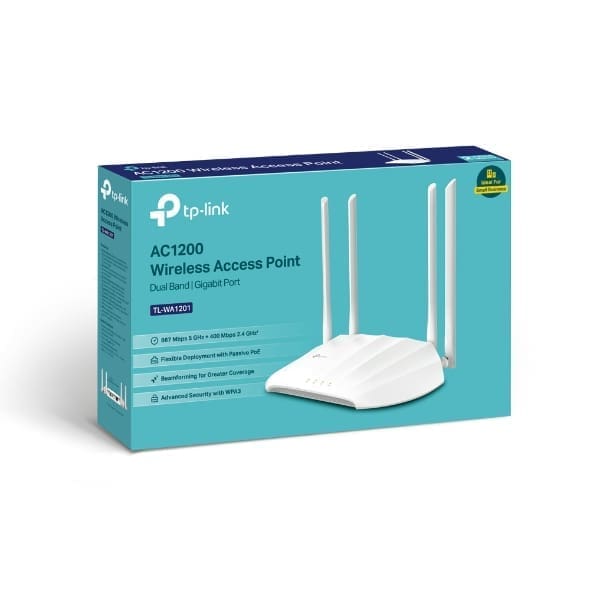

TP-Link TL-WA1201 AC1200 Access Point is a powerful dual-band wireless access point designed to deliver fast, stable, and flexible Wi-Fi coverage for homes, offices, shops, and business environments. With AC1200 Wi-Fi speed, Passive PoE support, multiple operating modes, and strong wireless coverage, this access point is ideal for users who need reliable network expansion and better wireless performance.
The TP-Link TL-WA1201 AC1200 Access Point supports both 2.4GHz and 5GHz bands, giving users the flexibility to connect different devices based on speed and coverage needs. The 5GHz band delivers up to 867Mbps, while the 2.4GHz band delivers up to 300Mbps, making it suitable for browsing, streaming, online meetings, file sharing, and general business connectivity.
AC1200 Dual-Band Wireless Performance
The TP-Link TL-WA1201 provides fast Wi-Fi 5 performance across both wireless bands. The 5GHz band is ideal for high-speed activities such as HD streaming, large file transfers, and online work, while the 2.4GHz band provides wider coverage for everyday devices.
- Wireless Speed: Up to 867Mbps on 5GHz
- Wireless Speed: Up to 300Mbps on 2.4GHz
- Wireless Standards: IEEE 802.11ac/n/a 5GHz and IEEE 802.11b/g/n 2.4GHz
- Frequency: 2.4GHz and 5GHz dual-band support
This makes the TP-Link TL-WA1201 AC1200 Access Point a reliable choice for users who need stable wireless connectivity across multiple devices.
Multiple Wireless Modes
One of the biggest advantages of the TL-WA1201 is its flexible deployment. It supports several operating modes, allowing it to fit different network requirements.
- Access Point Mode: Create a wireless network from a wired connection
- Range Extender Mode: Extend your existing Wi-Fi coverage
- Client Mode: Connect wired devices to a wireless network
- Multi-SSID Mode: Create multiple wireless networks for different users
This flexibility makes it suitable for offices, homes, schools, shops, hotels, and small businesses that need better Wi-Fi control and coverage.
Passive PoE for Flexible Installation
The TP-Link TL-WA1201 supports Passive PoE, allowing power and data to be carried over a single Ethernet cable. This helps make installation easier, especially in areas where a power socket may not be close to the access point location.
- Ethernet Port: 1 × 10/100/1000Mbps Ethernet port
- PoE Support: Passive PoE supported
- Included: PoE power injector
This feature is useful for mounting the access point in better positions for improved wireless coverage.
MU-MIMO & Beamforming Technology
The TP-Link TL-WA1201 AC1200 Access Point includes MU-MIMO technology, allowing it to transfer data to multiple devices more efficiently. This improves wireless performance when several users are connected at the same time.
It also comes with 4 fixed high-performance antennas and Beamforming technology. Beamforming helps focus the Wi-Fi signal toward connected devices, improving coverage and signal strength.
- Antennas: 4 fixed high-performance antennas
- Technology: MU-MIMO support
- Coverage: Beamforming for stronger wireless signal
Captive Portal & Security
The TL-WA1201 supports Captive Portal, which is useful for guest Wi-Fi access. This feature allows businesses to create a designed portal page for users before they access the network, helping improve security and marketing opportunities.
- Security: WPA3, WPA/WPA2, WPA-PSK/WPA-PSK2 encryption
- Advanced Feature: Captive Portal
- Network Control: Access Control, DHCP Server, Wireless Statistics
This makes the access point a practical option for shops, offices, cafés, reception areas, and business environments where guest Wi-Fi may be needed.
Hardware & Design
- Interface: 1 × Gigabit Ethernet port
- Buttons: Power On/Off, WPS, Reset
- Power Supply: 12V / 1A or 12V / 1.5A depending on region
- Dimensions: 225 × 145.5 × 37 mm
- Certifications: CE, FCC, RoHS
What’s in the Box
- TP-Link TL-WA1201 Wireless Access Point
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
- PoE Power Injector
Ideal For
The TP-Link TL-WA1201 AC1200 Access Point is ideal for homes, offices, small businesses, schools, shops, and users who need better Wi-Fi coverage and more flexible wireless networking. It is especially useful where stable dual-band Wi-Fi, guest access, and multiple wireless modes are required.
If you are looking for a dependable wireless access point with dual-band speed, Passive PoE, MU-MIMO, Beamforming, and Captive Portal support, the TP-Link TL-WA1201 is a strong and practical choice.
